Power & Performance
Up to four displays at 3840 x 2160 with performance to match.
Innovative Design
Designed and manufactured supported in the UK with a fanless design for increased uptime and reliability.
Security
A secure solution which would meet an organization's zero trust requirements, you can trust your data is protected.
High Performance
Delivering powerful performance with Intel Raptor Lake CPUs.
Designed for security and reliability

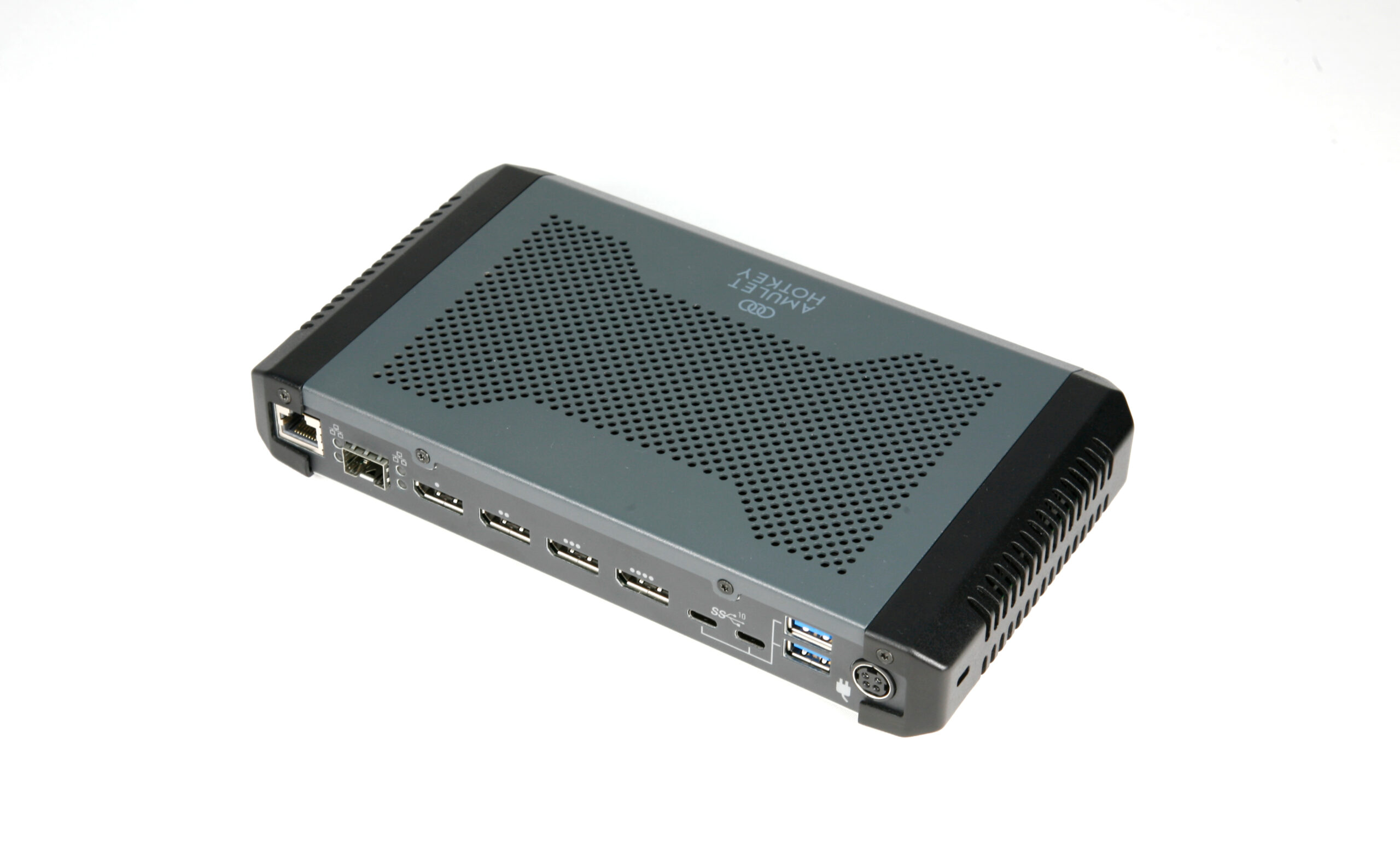

The DX1500 and DX1700 are engineered to a high standard with a fanless design for increased uptime and reliability, to empower users to reach their full potential without fear of hardware outage. A secure solution which would meet an organization’s zero trust requirements, you can trust your data is protected.
Security features include: Approved for accessing classified information up to SECRET using Becrypt OS and OS+ Secure device remote attestation and user authentication using centrally-managed credentials and multi-factor authentication including YubiKey USB security device. Multiple chassis intrusion switches to detect casework removal and optionally erase device in the event of tampering
REQUEST A QUOTE
Specification
Form Factor
Compact Desktop – 230mm x 133mm x 35mm
Processors
Intel 13th Gen ‘Raptor Lake’ Core CPUs: i5-1335U, and i5-1345U
Thin Client OS
Becrypt OS and OS+, IGEL OS, Unicon eLux7
General Purpose OS
Microsoft Windows 11 Pro
Other Supported OS Types
Ubuntu, Dell ThinOS, Windows 10 & 11 IoT
Cooling
Passive air cooled, fanless design
Mount options
Mounting points and specific mounting accessories available
Display outputs
Four DisplayPort 1.4 video outputs supporting up to 3840×2160 on four simultaneous displays or 5120 x 2160 on two displays
Dual Network connections
Copper RJ45 10/100/1000 Mbit/s SFP Module supporting 1000Mbit/s LR and SR Fibre and copper
TPM 2.0 compliant
FIPS-certified Firmware TPM or TCG-certified Discrete hardware TPM
Operating Conditions
5 degC to 35 degC ambient temperature
Power
Typ. 10W in-use, 1W standby. Universal AC power with external PSU
Security
Strong encryption and authentication including 256-bit AES and NSA Suite-B ciphers. Zero Trust ready with Two factor authentication options including secure USB Key. IEEE 802.1X network authentication. Cable lock slot Hardware intrusion detection.
USB connections
ear – Two USB-C 3.0 + Two USB-A 3.0 Front – Two USB-A 2.0
Memory and storage
Up to 16GB RAM, Up to 256GB local SATA or NVMe flash storage
Compliance
TAA Compliant, Safety, EMC: EN55032 and EN55035 Safety: UL62368-1 and IEC62368-1 UL Listed
